A Bailey bridge is a prefabricated modular steel bridge system built around standardized truss components. Its main components can be manufactured in advance, transported in sections and assembled or dismantled on site using connecting pins, bolts and related hardware.

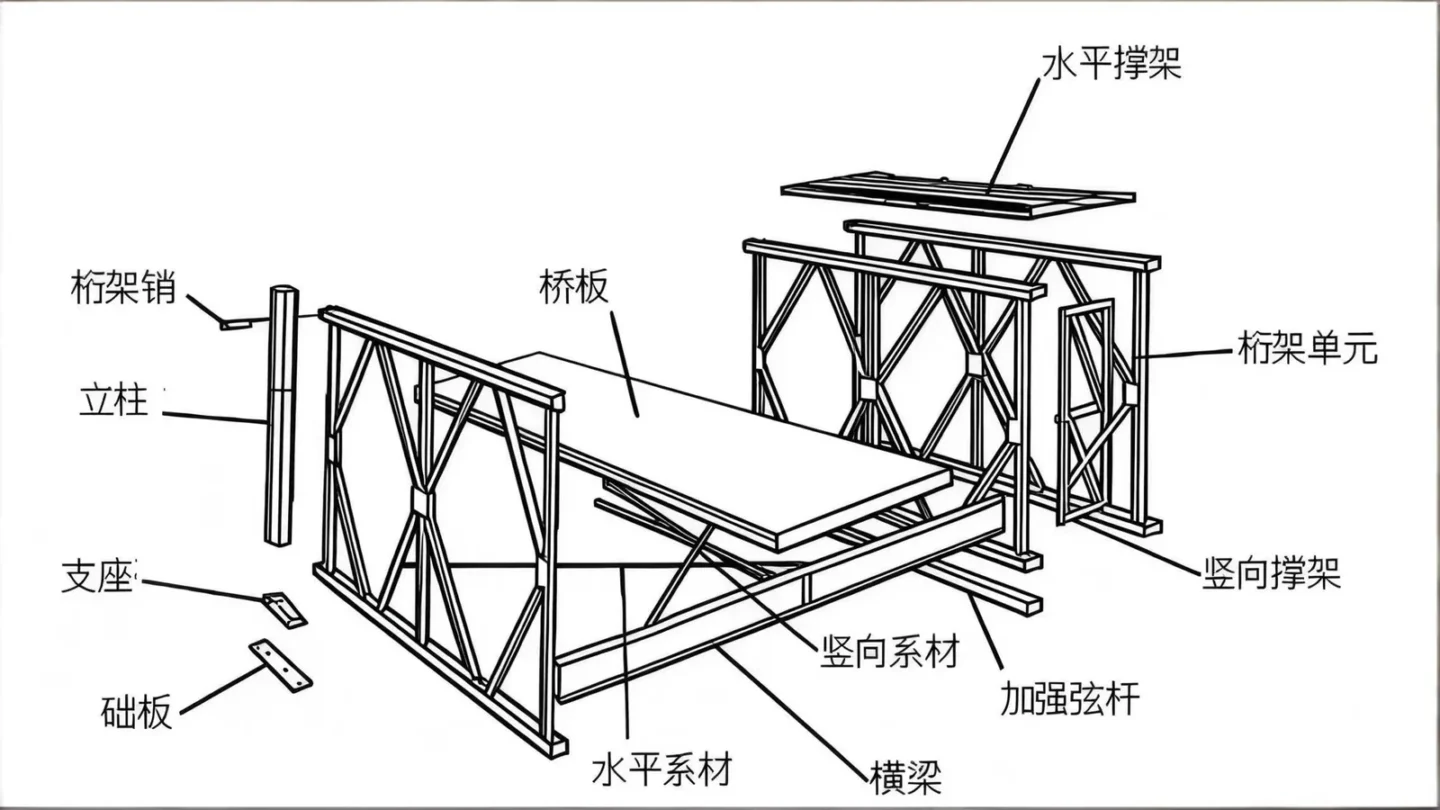

Main Components

• Truss System: Standard truss panels are connected with pins and can be configured with reinforcing components as required.
• Deck System: Cross girders, longitudinal members and deck panels work together to form the bridge deck.
• Connection System: Bracing, wind-resistant components, pins and other connecting hardware contribute to the stability of the assembled structure.

The final arrangement, span and load capacity must be determined from the approved design, loading requirements and actual site conditions.
